The Outrigger Pads for Cranes Pump Trucks and Fire Trucks in its shape. It usually has high strength and stiffness, which can reduce the deformation under stress and provide more stable support for construction machinery. In addition, the design of the leg pad also includes some additional functions, such as reducing the friction of the machinery on the ground, reducing ground damage, and extending the service life of the machinery

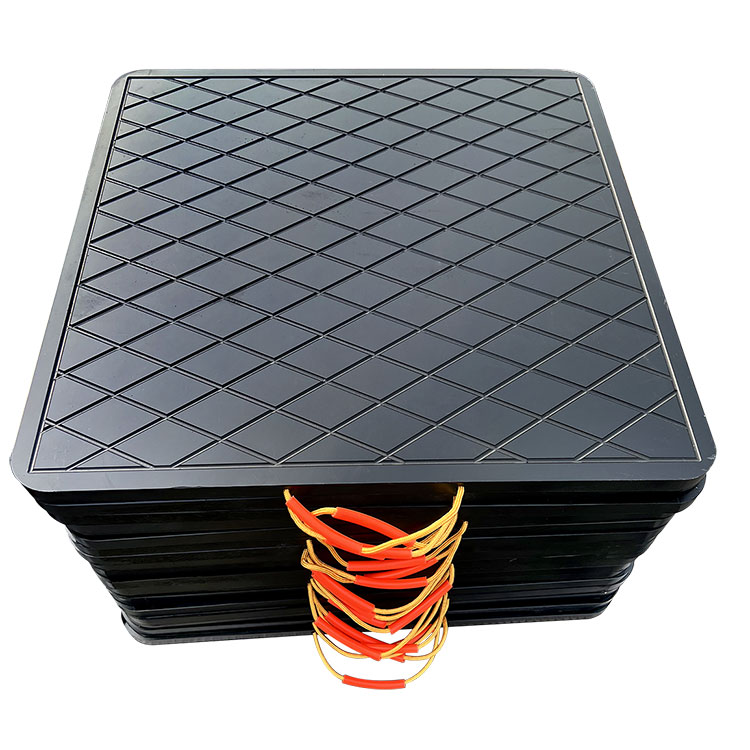

Outrigger Pad
1.Outrigger Pads for Cranes Pump Trucks and Fire Trucks Description:
Outrigger pads for Cranes, Pump trucks and Fire trucks:
- Common features:
· Supporting role: pads under the legs of construction machinery, dispersing the weight, reducing the ground pressure, to ensure the stability of the vehicle body.
· Material advantage: mostly polymer polyethylene, lightweight, high strength, wear-resistant, corrosion-resistant, aging-resistant, long service life, available in harsh environments.
· Portability: with portable rope or handle, easy to carry and arrange.
-Individual characteristics:
·Crane: high load bearing and stability requirements, can withstand huge weight and impact, no deformation and rupture during operation.
· Pump truck: need better shock absorption, adapt to complex ground, reduce vibration on the ground.
· Fire truck: rapid deployment, provides stable support in emergency, and have good fire prevention performance.
2. Product performance
3. Common specifications (size can be customized)
Size customization range:
|
No. |
Product Name |
Specification(L x W x T) |
Unit(PCS) |
Weight(kg) |
Application Models(tonnage) |
|
1 |
Outrigger Pad |
300*300*30 |
PCS |
2.7 |
1—2T |
|
2 |
Outrigger Pad |
300*300*50 |
PCS |
4.5 |
1—2T |
|
3 |
Outrigger Pad |
400*400*40 |
PCS |
6.4 |
Below 5T |
|
4 |
Outrigger Pad |
400*400*50 |
PCS |
8 |
Below 5T |
|
5 |
Outrigger Pad |
400*400*60 |
PCS |
9.6 |
Below 5T |
|
6 |
Outrigger Pad |
500*500*40 |
PCS |
10 |
15—20T |
|
7 |
Outrigger Pad |
500*500*50 |
PCS |
12.5 |
20—25T |
|
8 |
Outrigger Pad |
500*500*60 |
PCS |
15 |
25—30T |
|
9 |
Outrigger Pad |
500*500*70 |
PCS |
17.5 |
25—30T |
|
10 |
Outrigger Pad |
500*500*80 |
PCS |
20 |
30—35T |
|
11 |
Outrigger Pad |
500*500*100 |
PCS |
25 |
30—35T |
|
12 |
Outrigger Pad |
600*600*50 |
PCS |
18 |
30—35T |
|
13 |
Outrigger Pad |
600*600*60 |
PCS |
21.6 |
35—40T |
|
14 |
Outrigger Pad |
600*600*70 |
PCS |
25.2 |
35—40T |
|
15 |
Outrigger Pad |
600*600*80 |
PCS |
28.8 |
35—40T |
|
16 |
Outrigger Pad |
600*600*100 |
PCS |
36 |
45—50T |
|
17 |
Outrigger Pad |
700*700*60 |
PCS |
29.4 |
45—50T |
|
18 |
Outrigger Pad |
700*700*70 |
PCS |
34.4 |
45—50T |
|
19 |
Outrigger Pad |
700*700*80 |
PCS |
39.2 |
50—55T |
|
20 |
Outrigger Pad |
700*700*100 |
PCS |
49 |
50—60T |
|
21 |
Outrigger Pad |
800*800*50 |
PCS |
32 |
50—60T |
|
22 |
Outrigger Pad |
800*800*60 |
PCS |
38.4 |
50—60T |
|
23 |
Outrigger Pad |
800*800*70 |
PCS |
44.8 |
50—60T |
|
24 |
Outrigger Pad |
800*800*80 |
PCS |
51.2 |
50—60T |
|
25 |
Outrigger Pad |
800*800*100 |
PCS |
64 |
50—60T |
| 26 |
Outrigger Pad |
1000*1000*60 |
PCS |
60 |
Around 80T |
4.Product Application:

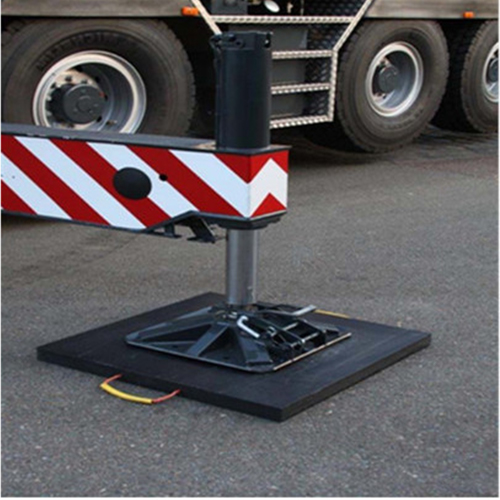

Crane Support Leg Pad is widely used in building construction, harbour terminal, bridge construction, electric power construction and other lifting operations, when the ground is uneven or insufficient load-bearing to ensure safe operation.
Pump truck outrigger leg pad is mainly used for concrete pouring in building construction, providing stable support for pump trucks in soft ground.
Fire truck outrigger leg pad ensures the stability of fire trucks in uneven ground at the fire scene, providing a safe platform for fire fighting operations and guaranteeing the operation of equipment.
5.Advantage
1. Stability
-Evenly disperse pressure
-Adapt to different ground conditions
2. Protection
- Protect the outriggers
- Protect the ground
3. Durability and reusability
-Made of durable materials
- Highly wear-resistant, not easily damaged even under long-term pressure from heavy equipment and frequent use.
-Reusable
- Due to its durability, the outrigger pads can be reused many times
